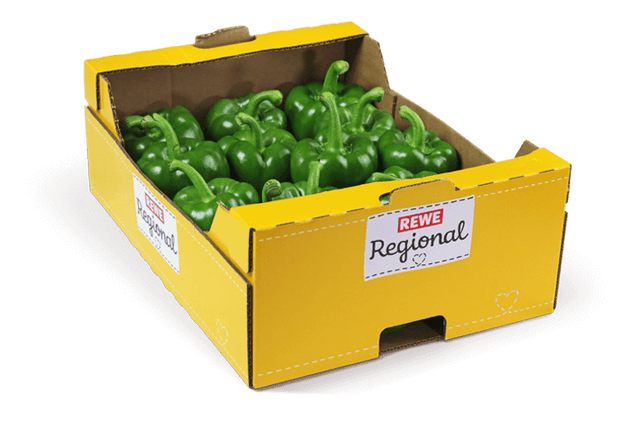

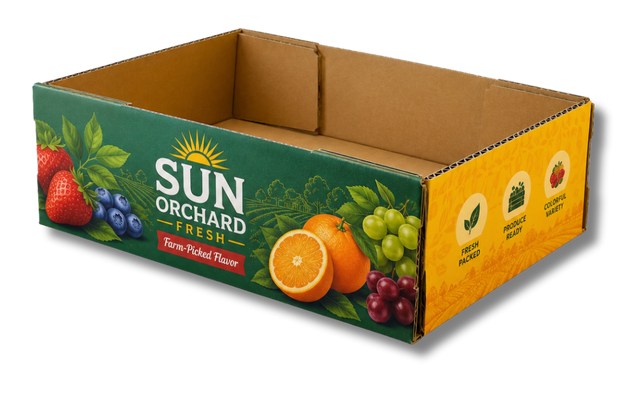

Corrugated Tray (Carrier)
Customize & Price Your Corrugated Tray
Box size & artwork dimensions
Inside box dimensionsBox sizes are measured inside the assembled box.
Artwork & dieline dimensionsUse the dieline generated for your selected box size and style. Flat artwork dimensions differ from assembled box dimensions. Keep artwork at 100% scale and follow the dieline’s bleed and safe-area markings.
Prepare your artwork
A few guidelines to help your design print as expected.
Start with your downloaded dielineAdd your artwork to the dieline downloaded for your selected box size and style, then upload the completed PDF.
- PDF artworkAdd your artwork to the dieline downloaded for your selected box size and style. Submit the completed artwork in PDF format. Other file types are not accepted for production.
- 300 DPIRaster images must be at least 300 DPI at their final printed size.
- CMYK printingWe print in CMYK. RGB and Pantone (PMS) colors are converted and may not match exactly. Printed colors can differ from your screen.
- Inside & outsideIf printing both sides, include the inside and outside artwork together in one PDF.
White areas in your artwork must be reversed out (left unprinted). These areas show the color of your selected board. On kraft board, they will appear kraft, not white.
Production timing Estimated production time is 10 business days for orders of 1,000 boxes or fewer and 15 business days for orders over 1,000 boxes. Production begins only after your order is accepted and your artwork receives final approval.
Follow these five steps to prepare artwork that matches your box.
- Choose your box and size
Set your box style and dimensions in the form before downloading your dieline.
- Download your dieline
Download the dieline PDF generated for that exact configuration. If you change the box size or style, download a new dieline.
- Add your artwork to the dieline
Open the downloaded dieline in your design software and add your design to it at 100% scale. Keep the template at its original size. Follow its cut, fold, bleed and safe-area guides when positioning artwork, text and logos.
- Export your finished artwork as a PDF
Use CMYK color and images of at least 300 DPI at their final printed size. For inside and outside printing, include both sides together in one PDF.
- Upload and check your artwork
Upload the completed dieline PDF with your artwork added. Recheck the box size, artwork placement and printed sides before continuing with your order.
Before uploading, review the Requirements & warnings tab, including the digital printing and white ink guidance.
Choose your material
Choose the board surface for the outside and inside of your box. Kraft shows the natural brown board; white gives artwork a lighter base. Areas left white in your file show the selected board because digital printing does not print white ink.
Click the icon to keep this guide open.
Choose your printed sides
Select outside, inside, or inside and outside printing. Match your artwork to the selected sides. For printing both sides, include the inside and outside artwork together in one PDF.
Click the icon to keep this guide open.
Choose your flute
Flute is the corrugated layer within the board. Choose a thickness suitable for your product and the protection it needs. Available flute options vary by box style.
Click the icon to keep this guide open.
Set your box length
Enter the finished box length in inches. Confirm the size before downloading your dieline; changing the size requires a new dieline.
Box sizes are measured inside the assembled box.
Click the icon to keep this guide open.
Set your box width
Enter the finished box width in inches. Check the length and width together so the chosen box fits your product before you prepare artwork.
Box sizes are measured inside the assembled box.
Click the icon to keep this guide open.
Set your box height
Enter the assembled box height in inches. Confirm that your product fits before downloading the dieline for your selected size.
Box sizes are measured inside the assembled box.
Click the icon to keep this guide open.
Set the bin back height
Enter the tall back panel height in inches. Check both Back Height and Front Height for the bin opening you need, then use the generated dieline to place artwork.
Box sizes are measured inside the assembled box.
Click the icon to keep this guide open.
Set the bin front height
Enter the shorter front panel height in inches. Check it together with Back Height, then download the dieline for that exact bin configuration.
Box sizes are measured inside the assembled box.
Click the icon to keep this guide open.
Choose your quantity
Choose a listed quantity, or use the plus control to enter a custom quantity when available. Review the updated total before continuing; available quantities depend on the box style.
Click the icon to keep this guide open.
Enter a custom quantity
Enter the number of boxes you need using the native quantity control. Wait for the updated price and check your quantity before continuing.
Click the icon to keep this guide open.
Two ways to add your artwork
Choose one path: download the dieline for your selected box size, add artwork in your own design software, then upload the completed PDF in the artwork area above; or choose Personalize to add and position your artwork online. Complete either path before adding your box to the cart.
Click the icon to keep this guide open.
Built to Carry. Designed to Display.
